Popcorn Tub Machine

The NS-BH220G Bucket Bowl Machine is designed for producing high-quality popcorn tubs at a speed of 70 tubs per minute. This machine specializes in creating tubs with a size of 210 mm, making it ideal for various markets such as cinemas, amusement parks, and concession stands.

NS-BH220G

Advantages

Machine Used for large size of the Bowls & Buckets.
Machine equipped with chain based transmation system,
Point lubaication at regular interval to run the machine.
Sealing - Side Sealing with Ultra Sonic and Bottom Sealing with Ceramic air heater, which can accomodate higher GSM Paper.
Conatiner Top Dia can be reach at 220 MM.

Speed

70 Pcs/Min.

Paper Specification

150-400 Gsm

Size Range

N/A

ProductDescription

Popcorn Tub Making Machine is manufactured using latest technology and high-tech equipment’s which are reliable as well as durable. This machine runs a whole procedure of paper feeding, bowl-fan wall sealing, oil lubrication, bottom punching, heating, rolling, rimming, rounding and discharge as well. This machine adopts automatic lubrication, longitudinal axis transmission and gear drive that ensures the stability and quality of machine. This model has an additional PLC Screen (Human Machine Interface) for better User Interface and Double Curling System that works with high precision and makes cup curling a smooth procedure. This model is highly automated with photoelectric sensors for detecting any kind of breakage in the system and uses Bottom Servo motor. It is suitable for manufacturing both Single and Double side PE coated Paper Bowls. This machine is used for making large containers like Popcorn Tubs, Chicken Buckets, Salad Bowls and many more.

Speed

70 Pcs/Min.

Paper Specification

150-400 Gsm

Size Range

N/A

Process of Bowl Formation

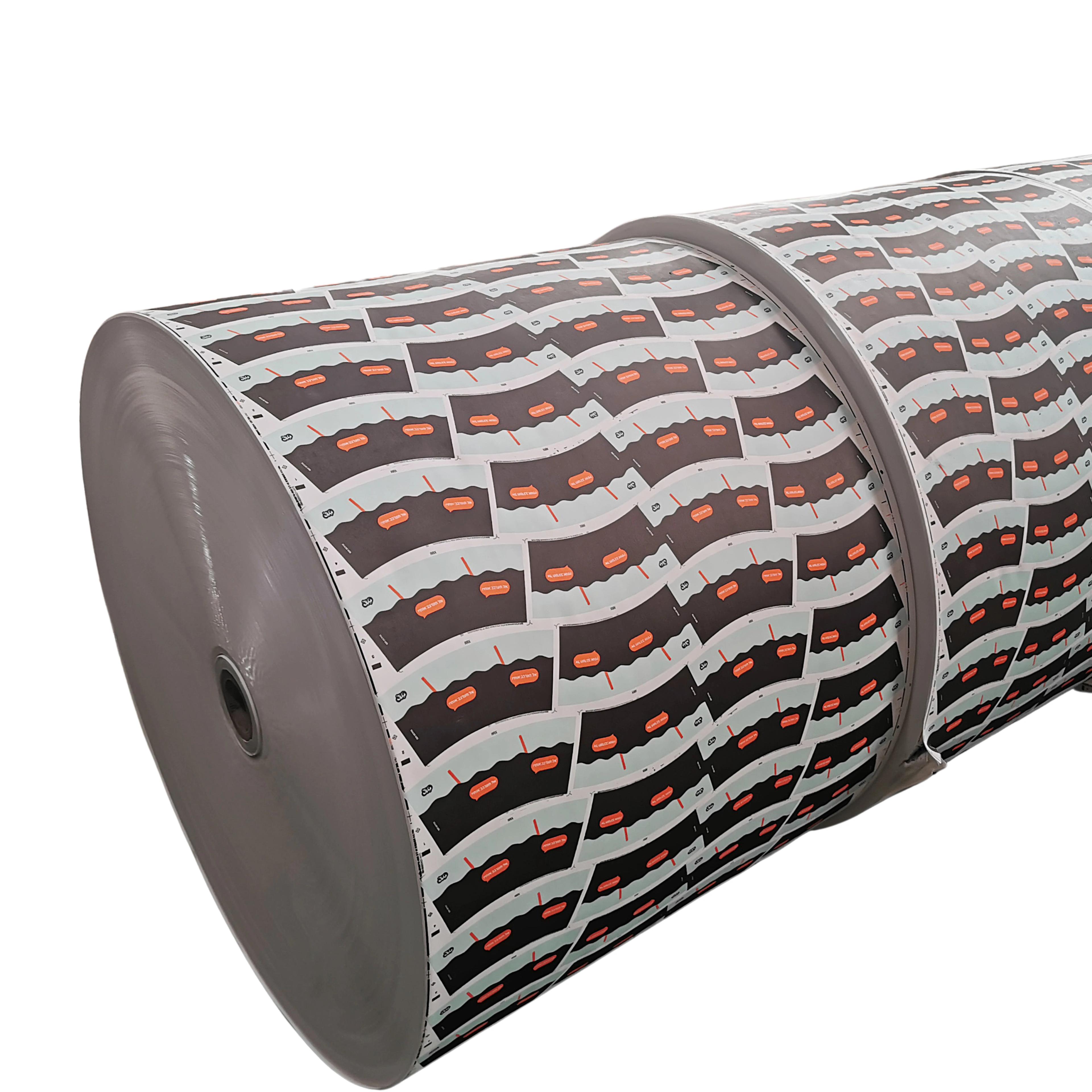

1. Paper Roll

The process begins with the sourcing of large paper rolls, typically made from food-grade paper that has been coated with a thin layer of polyethylene to make it waterproof. These rolls are the raw material that will be transformed into paper cups.

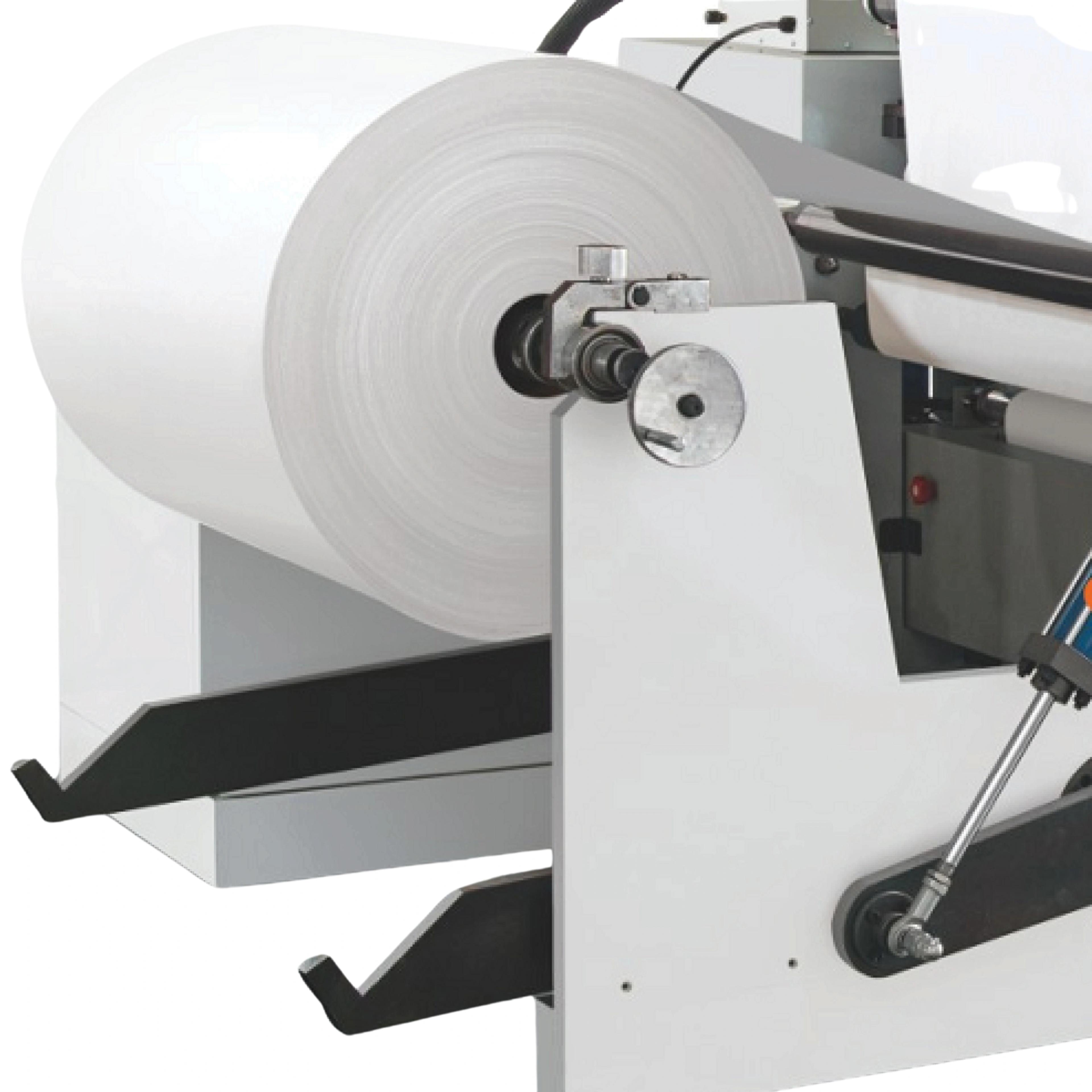

2. Printing

In the printing stage, the paper is fed into a high-speed printing machine that applies custom designs, logos, and other branding elements to the paper. This step is essential for creating branded cups that can be used for promotional purposes in cafes, restaurants, and events.

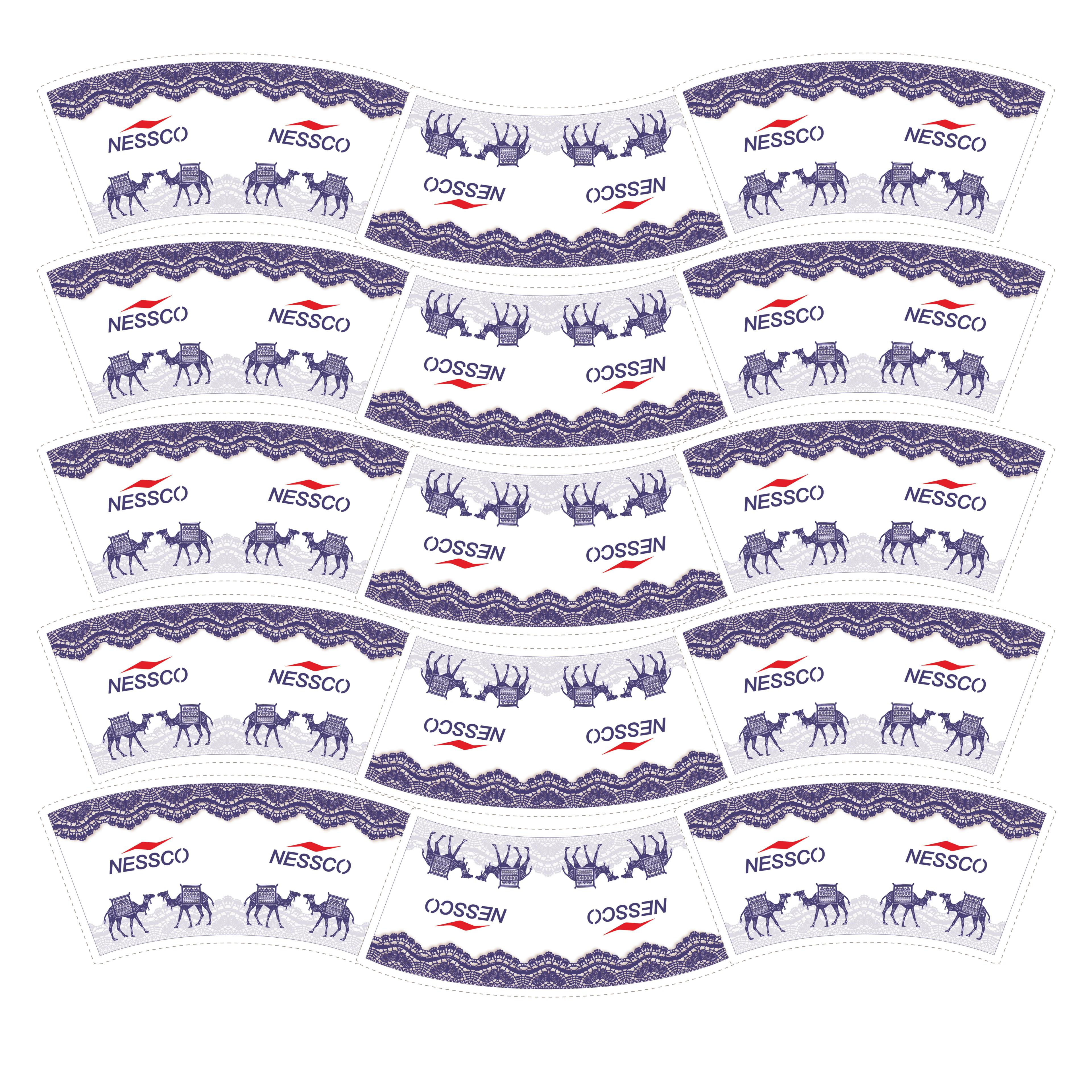

3. Cutting

After printing, the paper rolls are sent to the cutting machine, where they are precisely cut into flat, fan-shaped pieces known as blanks. These blanks will form the body of the paper cup. Accurate cutting is critical to ensure that the pieces fit together perfectly during the forming stage, avoiding any gaps or misalignment.

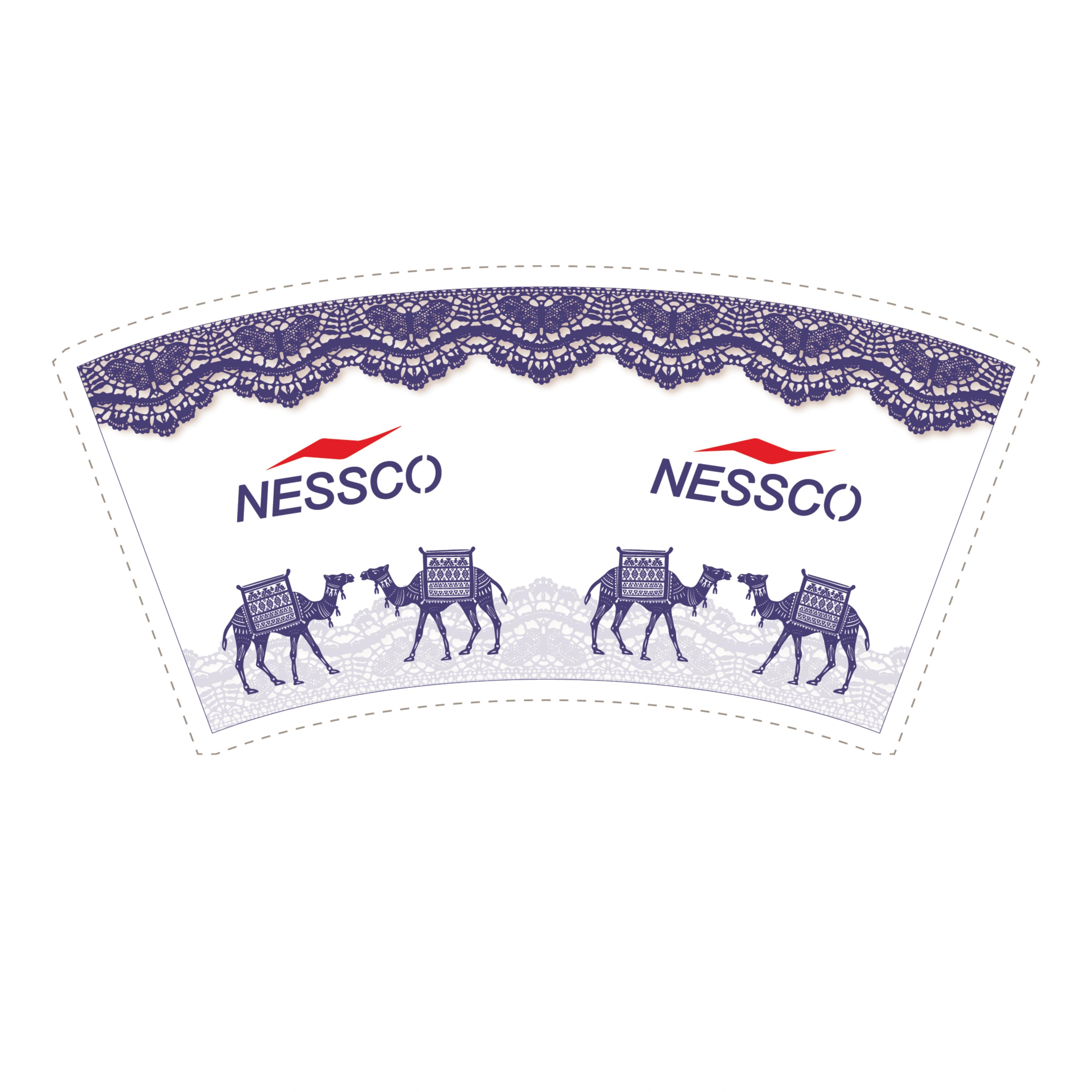

4. Paper Fan

The cut blanks are then shaped into a fan-like structure, ready to be formed into the cylindrical body of the cup. This step is important as it begins to give the paper its cup-like shape. The fan-shaped blanks are designed to make it easier to form a tight seam when the edges are joined together.

5. Forming

In this stage, the paper fan is rolled into a cylindrical shape, and the edges are sealed together to form the body of the cup. The machine uses heat and pressure to bond the edges of the paper and create a strong seam. This step transforms the flat blanks into the final cup shape, which is then ready for the next stage.

6. Final Product

Once the cup body is formed, the bottom of the cup is sealed using a separate machine. This step involves applying a bottom piece and sealing it with heat and pressure to ensure the cup is watertight. This final step ensures that the cup can hold liquids without leaking.

Applications

Technical Specifications

FEATURE	SPECIFICATION
Speed	50 Pcs/Min.
Paper Specifications	150-400 Gsm
Raw Materials	Single or Double PE/PLA Coated Paper

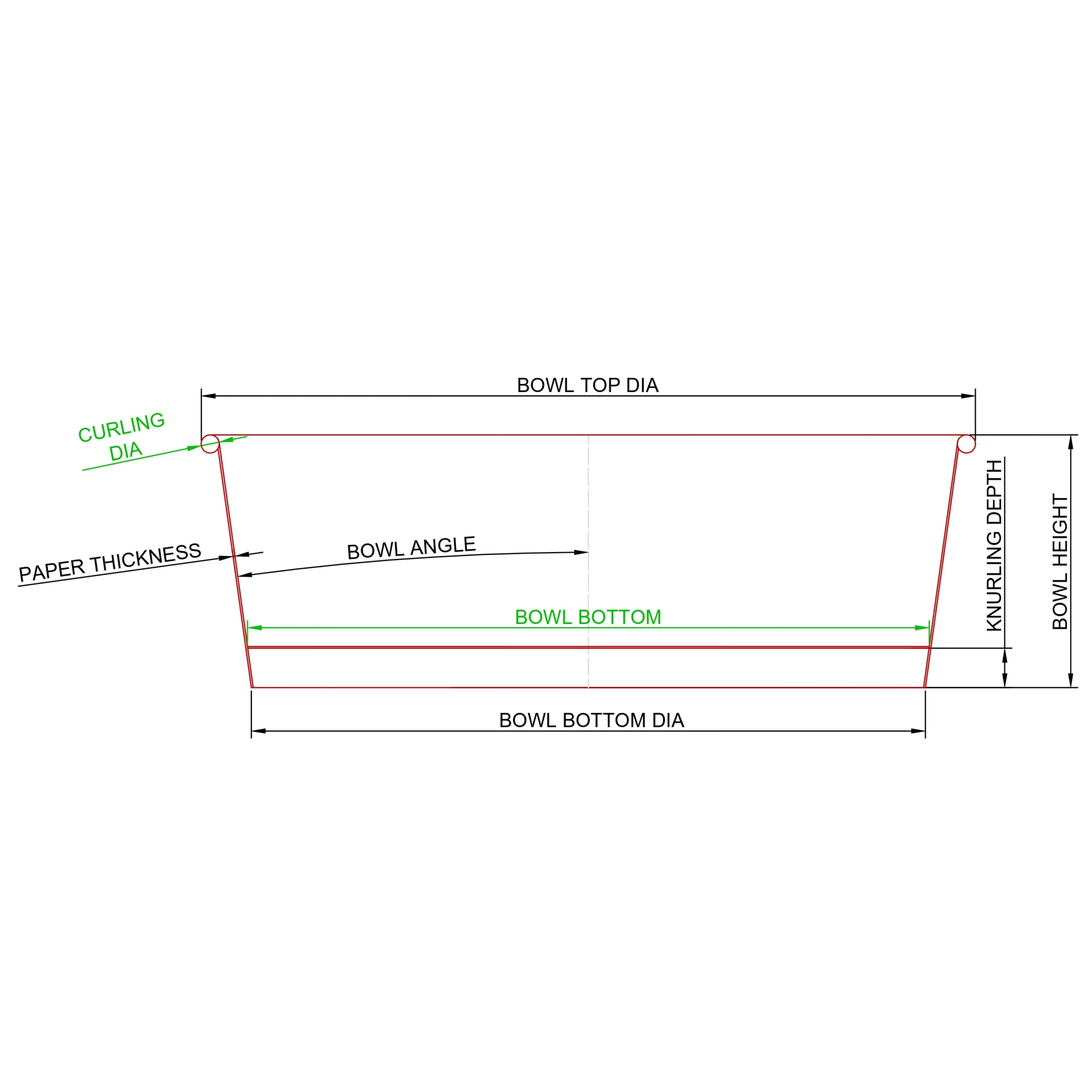

Bowl Top Dia (TD)	140-220 (mm)
Bowl Height (H)	50-210 (mm)
Bowl Bottom Dia (RB)	110-175 (mm)
Voltage	380-400VAC
General Power	15 Kw
Weight	4500 Kg
Dimensions	3200X1600X1700 (mm)
Air Pressure	6-8 Bar
